High Speed Automatic Flexo Printing & Slotting Machine
Our Automatic Flexo Printing & Slotting Machine is built to meet tough operational requirements, reliable, easy to setup and operate, higly useful for corrugated board production line.

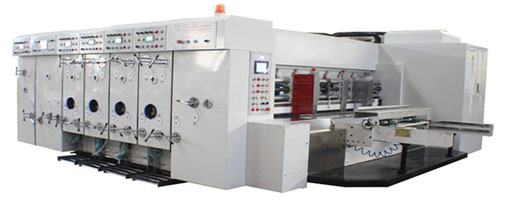

MIMT - 916 - HIGH SPEED AUTOMATIC FLEXO PRINTING AND SLOTTING MACHINE

CHARACTERISTICS

  • All the electrical appliances adopt domestic excellent products. The computer software is imported.
  • With the high efficiency dust removing device, it can clear the dust on the surface of the cardboard so that it can ensure the cleanliness and improve the printing quality.
  • All the drive gears are skewed tooth. It adopts high frequency quenching, and part of them are cementite treated.
  • After milling, grinding and sprinkle lubricating, the driving precision and using life are greatly improved.
  • It can store orders, and it is easy and convenient to change orders.
  • It adopts PLC and touch screen multifunctional control system, which are reliable. The malfunction rate is very low and it is easy to operate.
  • The mainframe, blower, phase motor, etc, adopt transducer control. The speed adjusting is steady, and it can save electricity. And it is correct and reliable.
  • This machine has functions of auto returning zero, auto proofreading, etc.
  • With skip feeding function, it can produce bigger cartons.
  • Each set has emergency stop switches, which can ensure the safety of the operators.
  • Rotary Die-cutting unit. (Option)
  • Automatic Stacker(Option)

TECHNICAL PARAMETER

Maximum speed

140 (pcs /min)

Max. feeding size

2000/2200/2400916 mm

Skip feeding size

2000/2200/24001200 mm

Max. printing size

1800/2000/2200850 mm

Min. feeding size

560260 mm

Thickness of printing plate

7.2 mm

Printing Color

1-4 color

Min. slotting space

2105021050 mm

Max. slotting depth

230 mm

Printing precision

0.5 mm
