Imported Machinery

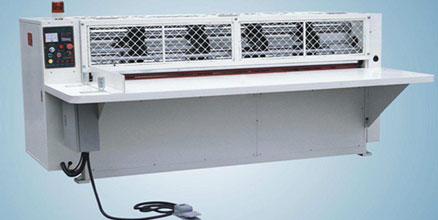

Thin Blade Cutting and Creasing
The Thin Blade Cutting and Creasing machine is very useful for corrugated board production line. Pre-pressed sheet feeding ensures stable sheet travel, thin edge slitting with auto and manual grinding stones keeps knives edge sharp and ensures smooth and clean slitting.

MIMT - 2000 / 2500 THIN EDGE SLITTER

Technical Parameter

MIMT 2000 Machine

MIMT 2500 Machine

Width of Paper board

2000 mm

2500mm

Max. Speed

141m/min

141m/min

Min. Creasing width

200mm

200mm

Min. Slitting Width

160mm

160mm

Outer dia of thin round edge knife

260mm

260mm

Thickness of thin round edge knife

1mm

1mm

Motor Power

4KW

4KW

Over view dimension

289014601500 MM

331014601530 MM

Machine Weight

3000 kg

3800 kg

Power

440 volts for 3 phase &220 volts for Single Phase 50HZ

440 volts for 3 phase &220 volts for Single Phase 50HZ

GENERAL FEATURES

  • Assembled with the electric counter to precisely control the quantity of paperboard lines without cracking.
  • The electromagnetic speed regulation motor adopted on the main motor, stepless speed changing is availableat the range of the 0-70 pages/min.easy for the users.
  • Thin edge slitter (1mm thickness) is adopted with automatic and manual grindstone to keep the knife edge sharp and make slit paper smooth and tidy
  • Pre-pressed paper feeding with the lower pre-pressed solid bearing covered by rubber, insures the stable paper transmit and good pre-press result.
  • Creasing on slit pre-pressed paperboard with lower creasing solid roller covered by rubber ensure the original
