Imported Machinery

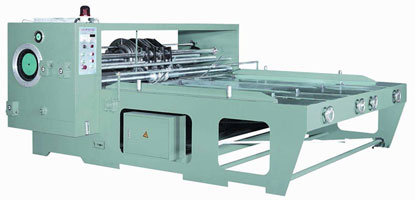

Combined Rotary Slotter and Creaser
The Machine is designed to slot,crease,corner out,slitting corrugated boxes.The machine is high speed, variable drive with chain feeder.

1224/1220 SEMI-AUTO ROTARY WHEEL SLOTTER - MODEL - CHAIN FEEDING
GENERAL FEATURES
  • The whole machine is designed and manufactured according to high requirements with reliable and safety function, easy to operate.
  • Select the fine materials and parts.
  • The paperboard feeding is adopted with the combined chain, manual feeding system.
  • Assembled with the electric counter to precisely control the feeding quantity.
  • To adopt the spraying circulation to lubricate the gears, reduce the noise and prolong the service life of gears,and improve the accuracy of process slotting at the meanwhile.
  • All the rollers are chrome plated to increase the hardness.
  • The Slotter register is adopted with electric digit adjustment, 360 degree forward and backward can be made no matter the machine is running or stopped.
  • Self-locking system is adopted on the caliber adjustment of the Slotting Boss
  • The slotting knife is made of fine alloy-steel with heat treatment and grind to form the notching slotting knife with the sharp edge and dual-flake blade for trimming, has the high precision.
  • Self-locking system is adopted on the caliber adjustment of the Slotting Boss

UPPER / LOWER FEEDING ROLLER

  • Upper Roller: Solid steel with the hard chrome plating with the outside diameter is 95mm, match with 4 pcs of feeding rings.
  • Lower roller: Cylinder with the hard chrome plating with the outside diameter is 150mm,and done with the dynamic balance correction
  • Manual adjust the gap caliber on the feeding roller. With the adjustment scope 0-12mm,

PRE-CREASING ROLLER

  • The pre-creasing roll assembled at back of last printer and the front of slotting, lower roller is the solid steel with the diameter is 90 mm, and attaching 4 sets Of pre-creasing rings.
